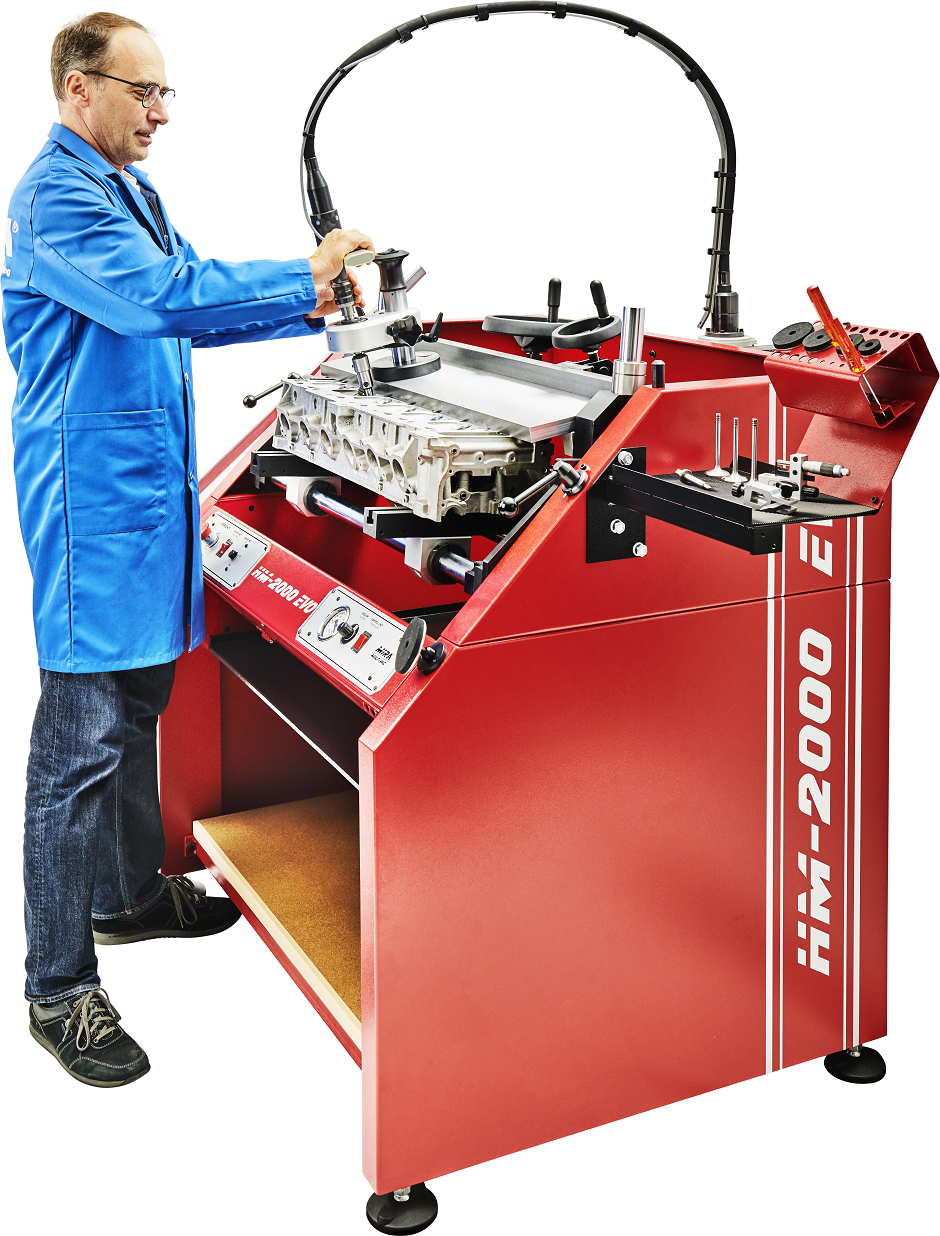

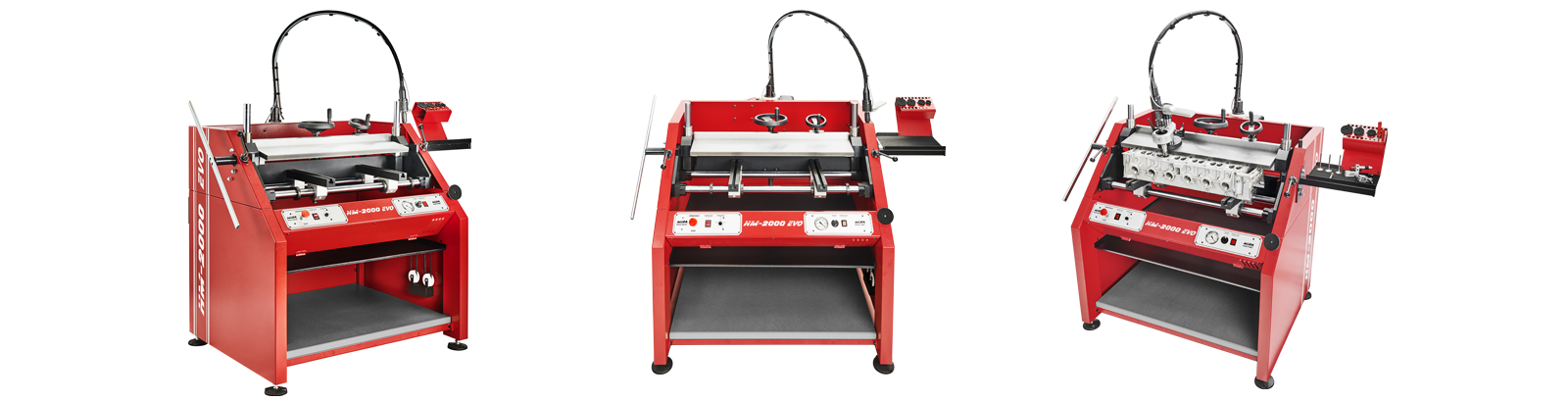

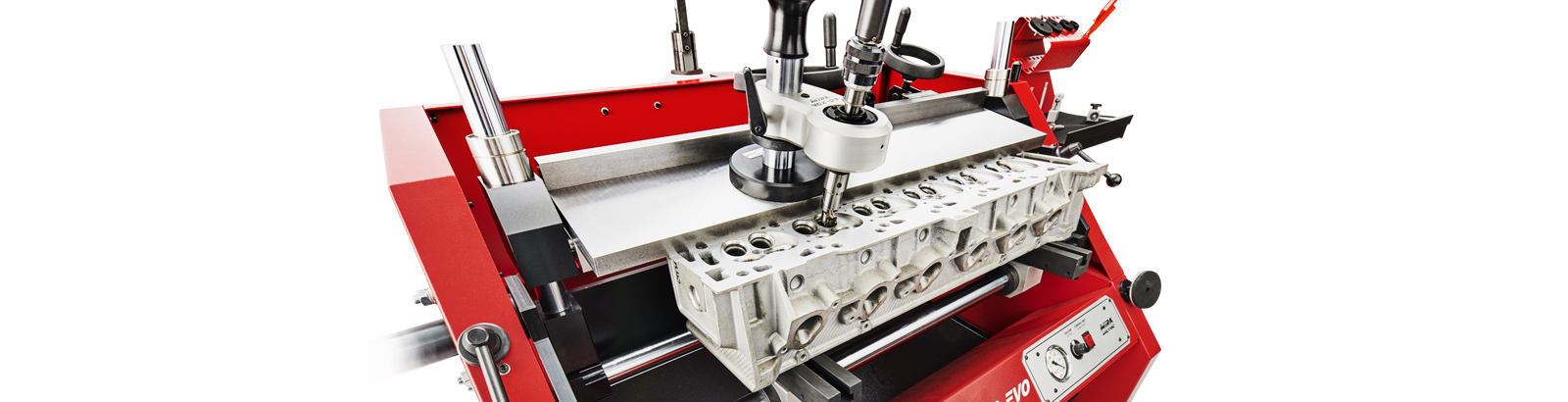

HMX-2000 EVO
The Universal Cylinderhead Center
The HMX-2000 EVO is a versatile complete and sturdy working center which satisfies highest requirements for professional engine rebuilders . Almost any kind of cylinderheads in weight of 120 kg and 800mm in weight can be quickly fixed into place by means of a universal quick-locking fixture.
HM-2000 EVO standard features
- 800mm/300° rotating heavy duty cylinder head support
- Integrated MIRA Vario-Drive electronic variable speed drive
- MIRA Multivac vacuum test unit
- HDT-25 steel table
- Storage table
- Standard machine colour: signal red (RAL3001)
- *Different machine colours on request
Specifications
| Max. Cylinderhead lenght | 800 mm |
| Rotation head support | 300° |
| Vario - Drive Spindle Speed | 0 - 270 1/min |
| System Voltage | 110/230 Volt 50/60 Hz |
| Flore space requirements | 145 x 115 x 140 cm |
| Machine weight | 440 kg gross / 335 kg net |
Available in 110V or 230 Voltage 50/60 Hz
The colours of MIRA...

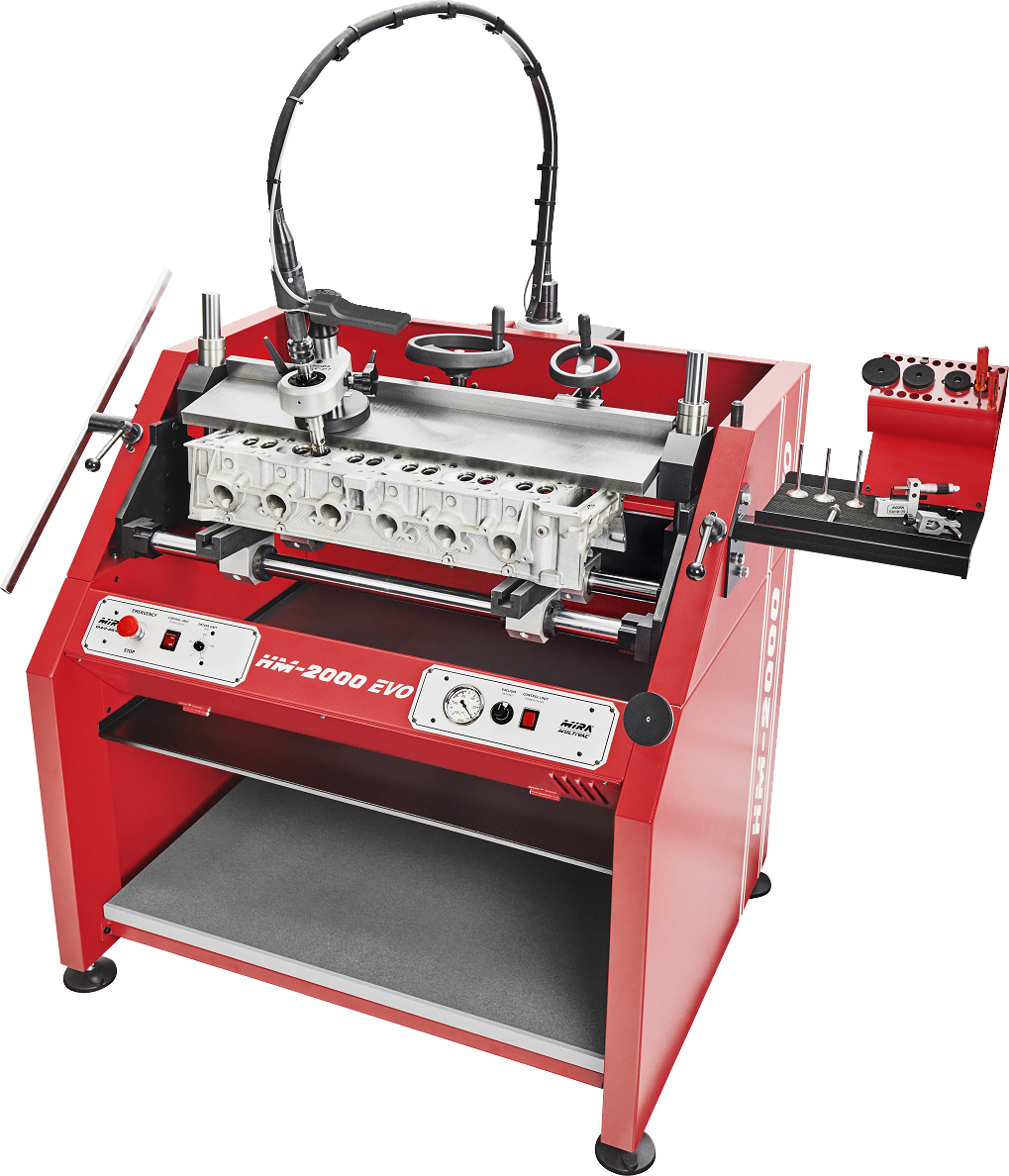

Standard Colour RAL 3001 RED

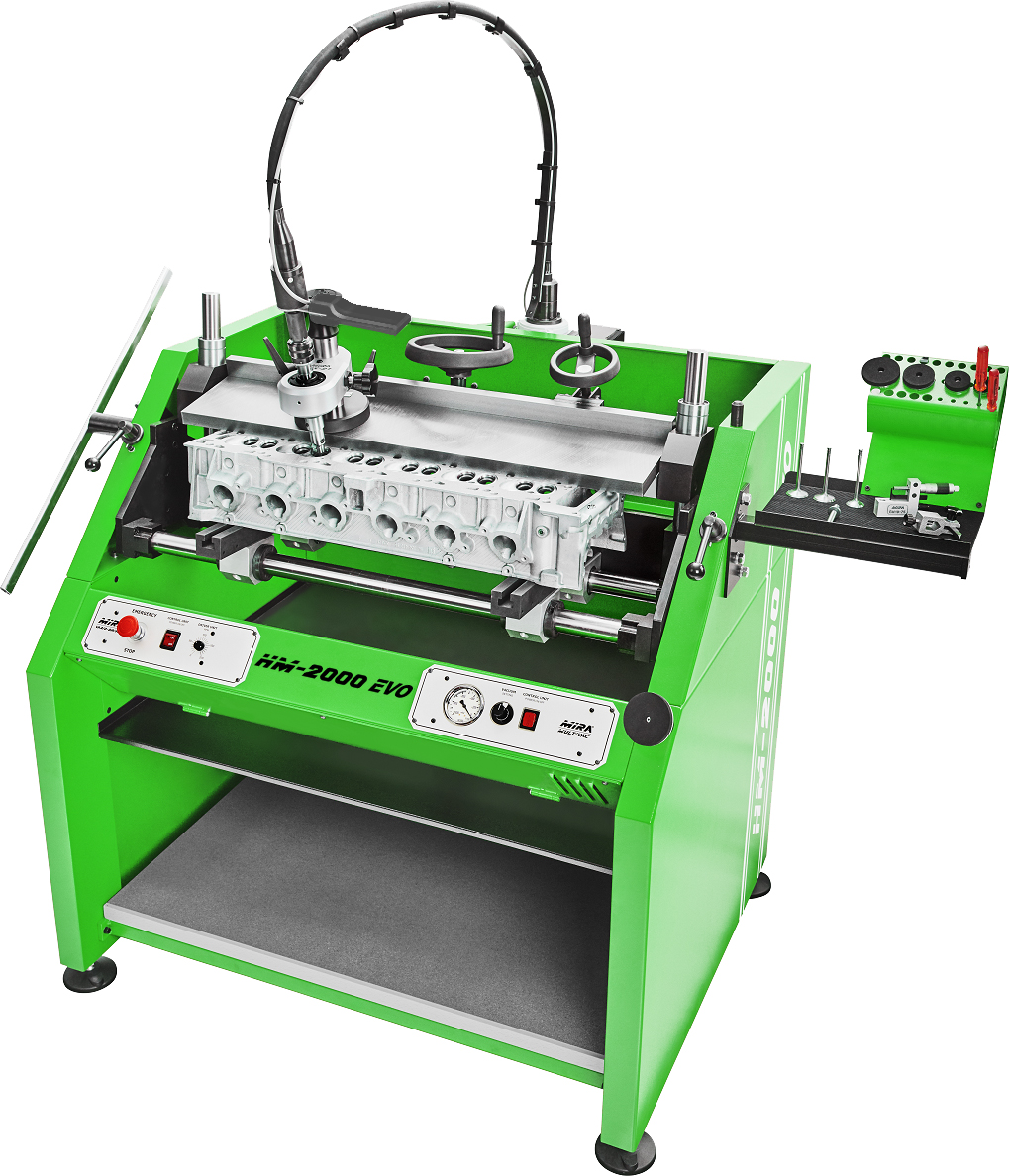

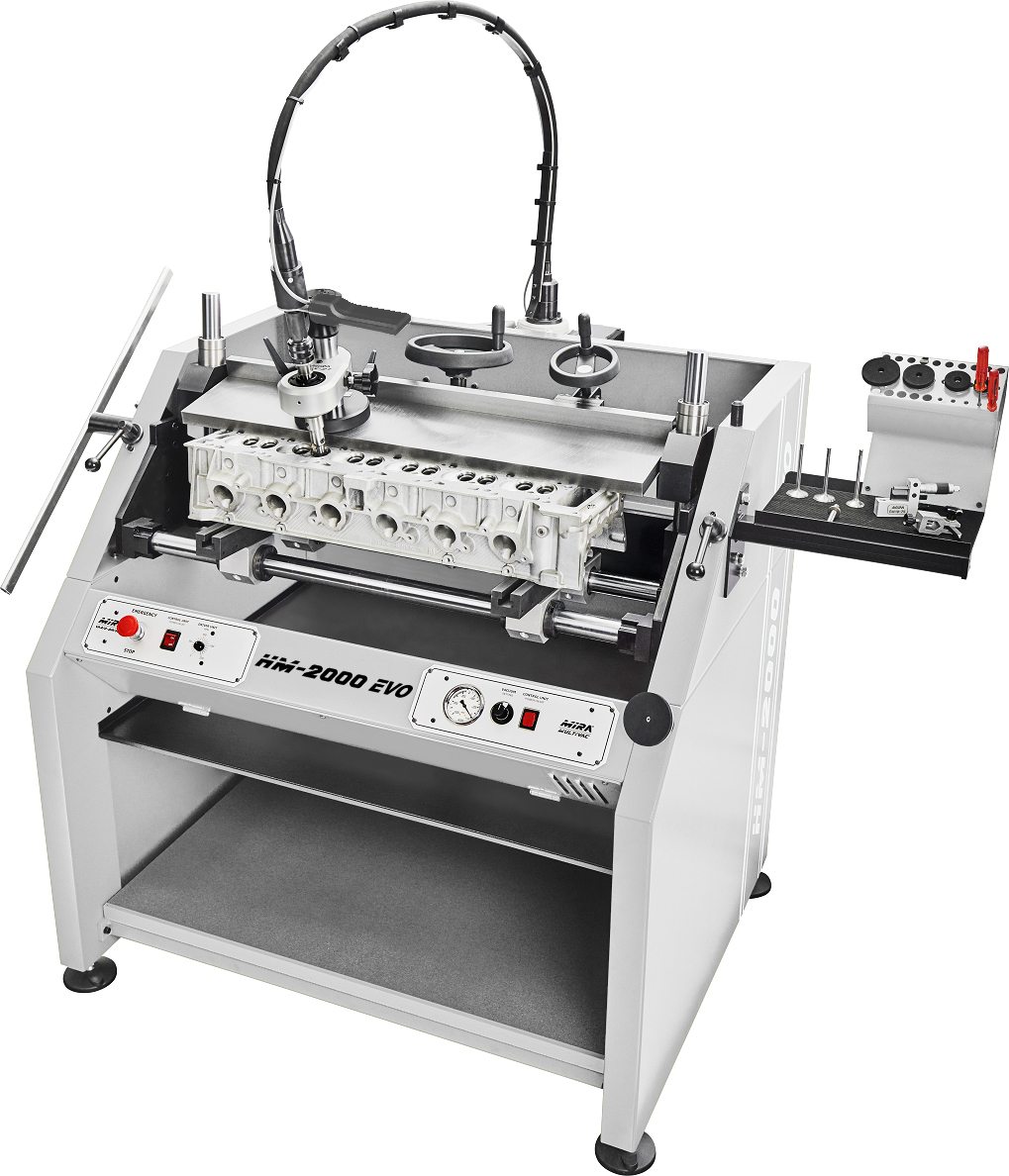

->Different machine colours on request<-
The HMX-2000 EVO Package includes:
- MIRA VGX-21 Valve Seat Refacting Unit with DR1 /21-45mm) toolhead
- 6x Pilots FD-type (free selection)
- 6x SK-type Formtools (free selection)
- 1x Formtool setting gauge
- HMX-2000 EVO Cylinderhead workbench Colour: RAL 3002 Red
- AV rotating cylinderhead fixture
- HDT-25 steel table
- Vario-Drive electronic drive unit (Integrated)
- Multivac Vacuum test unit (Integrated)
- Storage table
- service tooling & instruction manual in English
Optional Equipment
- Toolhead DT05 16-25mm
- Toolhead DT2 37-55mm
- Toolhead DT3 35-75mm
- DSD double edged toolhead 26-36mm 0 or 5°
- DSD double edged toolhead 35-45mm 0 or 5°
- DSD double edged toolhead 45-55mm 0 or 5°
- DSD double edged toolhead 55-75mm 0 or 5°
- EM25-75 Adjusting Micrometer
